PCC 5线负载均衡脚本

583626612

以下为PCC 5线负载均衡脚本，能正常工作，但是有一个问题，中间有条线路PPPOE-out3，无论如何没有流量，
本人钻研数日，都无法开解，困惑至极，请高人指教！将之修改完善，造福大众！

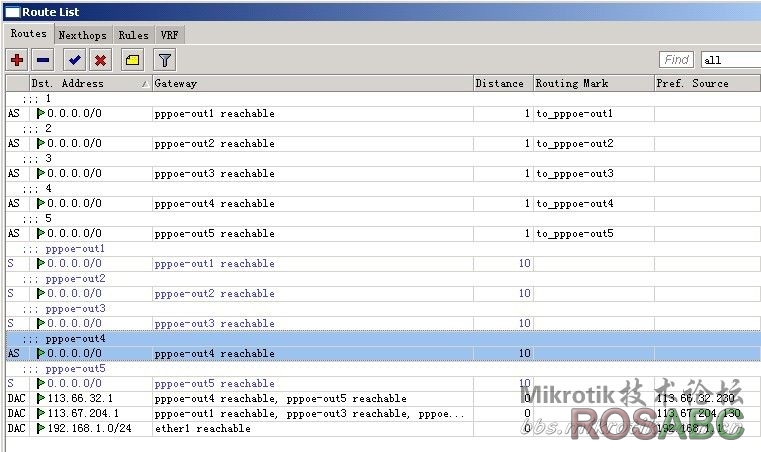

2010-1-31 09:44 上传
下载附件 (78.23 KB)

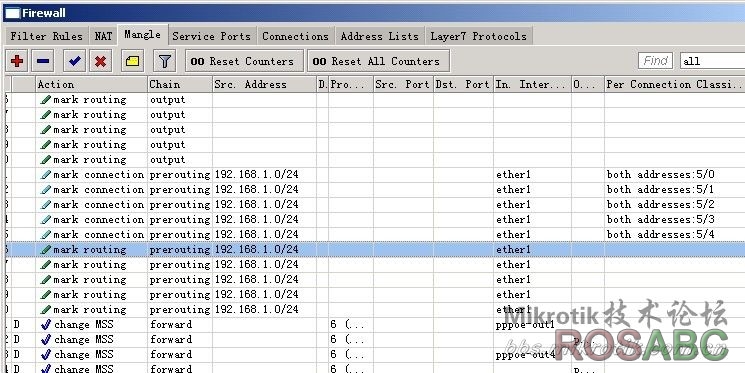

2010-1-31 09:44 上传
下载附件 (83.45 KB)




/ip address add address=192.168.1.1/255.255.255.0 interface=ether1 comment=LAN
/ip dns set primary-dns=202.96.128.166 secondary-dns=202.96.128.68 allow-remote-requests=yes


/ip firewall mangle
add action=change-mss chain=forward comment="CHANGE MSS" disabled=no new-mss=1440 protocol=tcp tcp-flags=syn

add action=mark-connection chain=input comment="" disabled=no in-interface=pppoe-out1 new-connection-mark=pppoe-out1_conn passthrough=yes
add action=mark-connection chain=input comment="" disabled=no in-interface=pppoe-out2 new-connection-mark=pppoe-out2_conn passthrough=yes
add action=mark-connection chain=input comment="" disabled=no in-interface=pppoe-out3 new-connection-mark=pppoe-out3_conn passthrough=yes
add action=mark-connection chain=input comment="" disabled=no in-interface=pppoe-out4 new-connection-mark=pppoe-out4_conn passthrough=yes
add action=mark-connection chain=input comment="" disabled=no in-interface=pppoe-out5 new-connection-mark=pppoe-out5_conn passthrough=yes

add action=mark-routing chain=output comment="" connection-mark=pppoe-out1_conn disabled=no new-routing-mark=to_pppoe-out1 passthrough=yes
add action=mark-routing chain=output comment="" connection-mark=pppoe-out2_conn disabled=no new-routing-mark=to_pppoe-out2 passthrough=yes
add action=mark-routing chain=output comment="" connection-mark=pppoe-out3_conn disabled=no new-routing-mark=to_pppoe-out3 passthrough=yes
add action=mark-routing chain=output comment="" connection-mark=pppoe-out4_conn disabled=no new-routing-mark=to_pppoe-out4 passthrough=yes
add action=mark-routing chain=output comment="" connection-mark=pppoe-out5_conn disabled=no new-routing-mark=to_pppoe-out5 passthrough=yes

add action=mark-connection chain=prerouting comment="" disabled=no dst-address-type=!local in-interface=ether1 new-connection-mark=pppoe-out1_conn passthrough=yes per-connection-classifier=both-addresses:5/0 src-address=192.168.1.0/24
add action=mark-connection chain=prerouting comment="" disabled=no dst-address-type=!local in-interface=ether1 new-connection-mark=pppoe-out2_conn passthrough=yes per-connection-classifier=both-addresses:5/1 src-address=192.168.1.0/24
add action=mark-connection chain=prerouting comment="" disabled=no dst-address-type=!local in-interface=ether1 new-connection-mark=pppoe-out3_conn passthrough=yes per-connection-classifier=both-addresses:5/2 src-address=192.168.1.0/24
add action=mark-connection chain=prerouting comment="" disabled=no dst-address-type=!local in-interface=ether1 new-connection-mark=pppoe-out4_conn passthrough=yes per-connection-classifier=both-addresses:5/3 src-address=192.168.1.0/24
add action=mark-connection chain=prerouting comment="" disabled=no dst-address-type=!local in-interface=ether1 new-connection-mark=pppoe-out5_conn passthrough=yes per-connection-classifier=both-addresses:5/4 src-address=192.168.1.0/24

add action=mark-routing chain=prerouting comment="" connection-mark=pppoe-out1_conn disabled=no in-interface=ether1 new-routing-mark=to_pppoe-out1 passthrough=yes src-address=192.168.1.0/24
add action=mark-routing chain=prerouting comment="" connection-mark=pppoe-out2_conn disabled=no in-interface=ether1 new-routing-mark=to_pppoe-out2 passthrough=yes src-address=192.168.1.0/24
add action=mark-routing chain=prerouting comment="" connection-mark=pppoe-out3_conn disabled=no in-interface=ether1 new-routing-mark=to_pppoe-out3 passthrough=yes src-address=192.168.1.0/24
add action=mark-routing chain=prerouting comment="" connection-mark=pppoe-out3_conn disabled=no in-interface=ether1 new-routing-mark=to_pppoe-out4 passthrough=yes src-address=192.168.1.0/24
add action=mark-routing chain=prerouting comment="" connection-mark=pppoe-out3_conn disabled=no in-interface=ether1 new-routing-mark=to_pppoe-out5 passthrough=yes src-address=192.168.1.0/24

/ip route
add comment=1 disabled=no distance=1 dst-address=0.0.0.0/0 gateway=pppoe-out1 routing-mark=to_pppoe-out1 check-gateway=ping
add comment=2 disabled=no distance=1 dst-address=0.0.0.0/0 gateway=pppoe-out2 routing-mark=to_pppoe-out2 check-gateway=ping
add comment=3 disabled=no distance=1 dst-address=0.0.0.0/0 gateway=pppoe-out3 routing-mark=to_pppoe-out3 check-gateway=ping
add comment=4 disabled=no distance=1 dst-address=0.0.0.0/0 gateway=pppoe-out4 routing-mark=to_pppoe-out4 check-gateway=ping
add comment=5 disabled=no distance=1 dst-address=0.0.0.0/0 gateway=pppoe-out5 routing-mark=to_pppoe-out5 check-gateway=ping

add check-gateway=ping comment="pppoe-out1" disabled=no distance=10 dst-address=0.0.0.0/0 gateway=pppoe-out1
add check-gateway=ping comment="pppoe-out2" disabled=no distance=10 dst-address=0.0.0.0/0 gateway=pppoe-out2
add check-gateway=ping comment="pppoe-out3" disabled=no distance=10 dst-address=0.0.0.0/0 gateway=pppoe-out3
add check-gateway=ping comment="pppoe-out4" disabled=no distance=10 dst-address=0.0.0.0/0 gateway=pppoe-out4
add check-gateway=ping comment="pppoe-out5" disabled=no distance=10 dst-address=0.0.0.0/0 gateway=pppoe-out5

/ip firewall nat
add action=masquerade chain=srcnat comment="1" disabled=no out-interface=pppoe-out1
add action=masquerade chain=srcnat comment="2" disabled=no out-interface=pppoe-out2
add action=masquerade chain=srcnat comment="3" disabled=no out-interface=pppoe-out3
add action=masquerade chain=srcnat comment="4" disabled=no out-interface=pppoe-out4
add action=masquerade chain=srcnat comment="5" disabled=no out-interface=pppoe-out5

56416544

111111111111111111111

hahatalks

看看先！！

tpdddz

当然是PCC好。

jhm333

回。。。。。回。。。。。回。。。。。

8869681

试试................

20999

经过几天的观察，发现PCC流量的确不如NTH均衡，PCC不但考虑数据流的源和目标，更多的顾忌数据流的路径，强调原路来，原路去，这样就导致了一些出口拥堵，其他出口可能没有流量的情况。
网吧还是用NTH好，单线带宽够大方可考虑PCC。

fablefe

本帖最后由 sike5184 于 2010-1-31 16:36 编辑

我的QQ172948501！请注明~~~~~~~~~~~把你的路理由表哪张全部帖出来？

廓外布丁

经过几天的观察，发现PCC流量的确不如NTH均衡，PCC不但考虑数据流的源和目标，更多的顾忌数据流的路径，强调 ...
srisy 发表于 2010-2-3 20:14

      从3.24版本开始，ROS引入新的负载均衡概念，就是PCC匹配器（per- connection-classifier），这个匹配器允许你分离传输流，做到平衡流量的能力，这里面可以设置设置选择根据源地址，源端口，目标地址，目标端口来进行处理，现在论坛里已经有相关的设置帖子，一般是使用所有地址来进行处理，即“both addresses”（使用这种方式才能解决网银问题，如果选择按port方式就会跟NTH一样需要处理网银端口走线），这种处理方式是目前来讲最全面的一种了。很多人以为NTH应该跟PCC差不多，其实不然，虽然大家都是依据各自的规则来进行均衡，两者都不可能达到真正的1+1=2，但是事实上，PCC内置了一个连接重置规则，比如说，你是两条ADSL均衡，使用NTH时就会发现，如果其中一条线路满载，客户机PING外网的话，会出现一下延迟很大，一下延迟很小的情况，如果使用PCC，则不会如此，当其中一条线路满载时，PING连接将会被丢弃再重新选择另一条线路，这样就会达到带宽更充足的利用，从而概念上达到1+1接近于2。（图1显示的是当ADSL1线路满载的情况下，ping值依然很低）所以，选择PCC是更有好利的，况且PCC已经解决了网银问题，以及部分软件走线不兼容问题，不要吝惜你稳定使用着的ROS旧版本，尽管升级吧，至少也得升到3.30版。


这是我在rc论坛看到的.现在看来各种说法都有.到底哪个正确?

316898555

我的PCC做出来，就是只跑默认路由的那一根线是怎么回事呢？望赐教啊。。。
